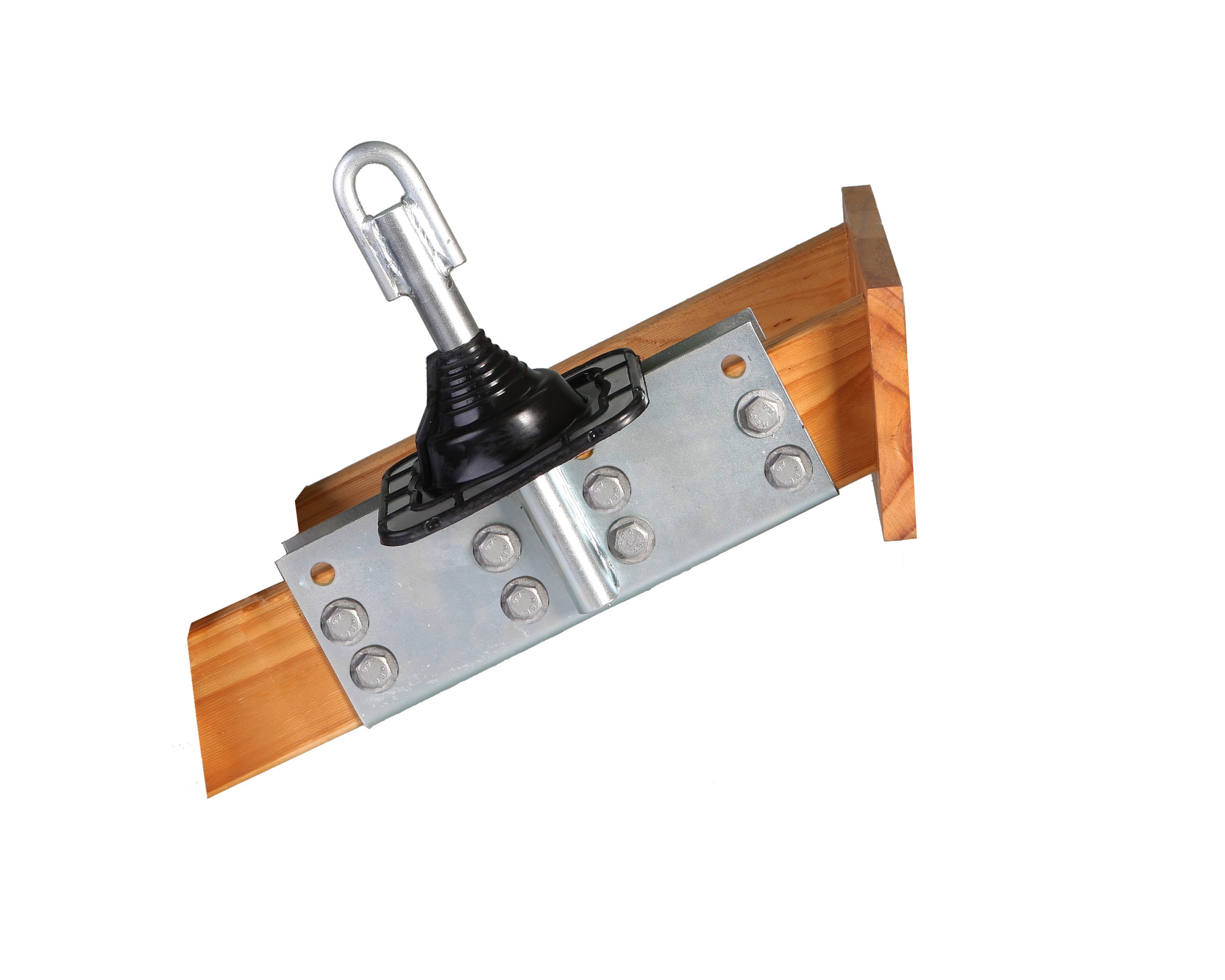

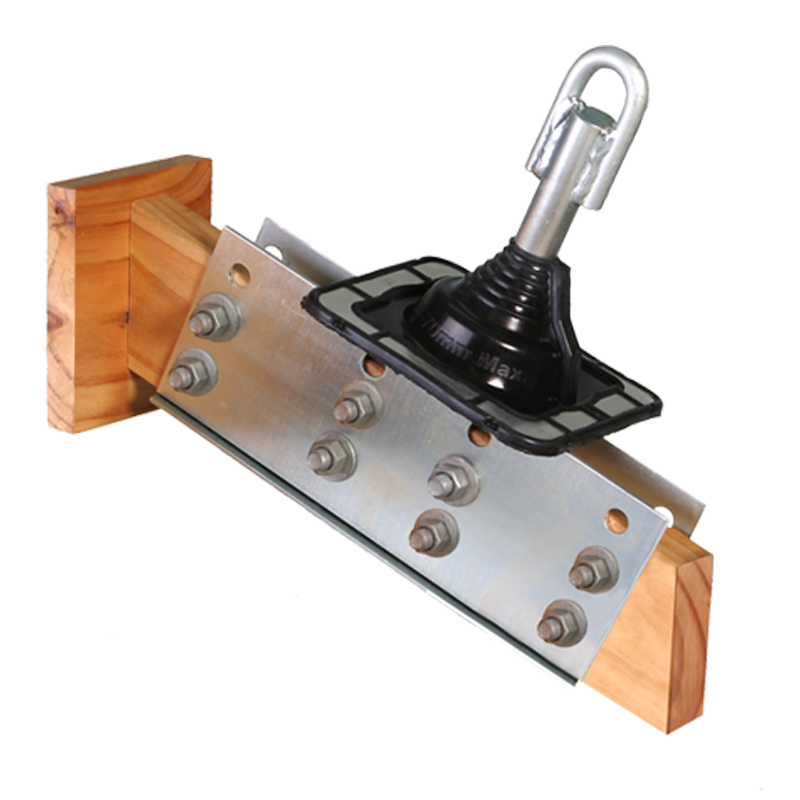

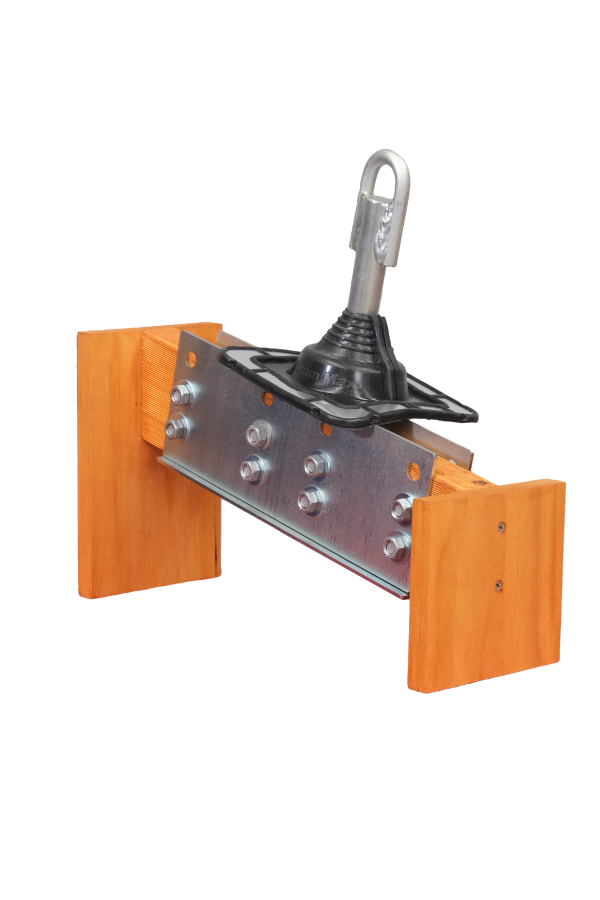

Roof Safety Anchor
- A fixed single point fall-arrest Roof Safety Anchor, designed for use on timber roof trusses, has been tested for static and dynamic load capacity in accordance with AS/NZS 5532 Standards
- Bolts attach bracket to rafter for maximum safety in harness work
- Proudly Australian designed and made in Australia by a proud Australian owned company
Care Instructions
Roof Extenda recommends painting brackets before installation. Safety Anchor is to be cleaned and inspected yearly and re-coated if required.
Note
Local Council or Shire approval may be required prior to construction. Roof Extenda accepts no responsibility for the type of construction undertaken.

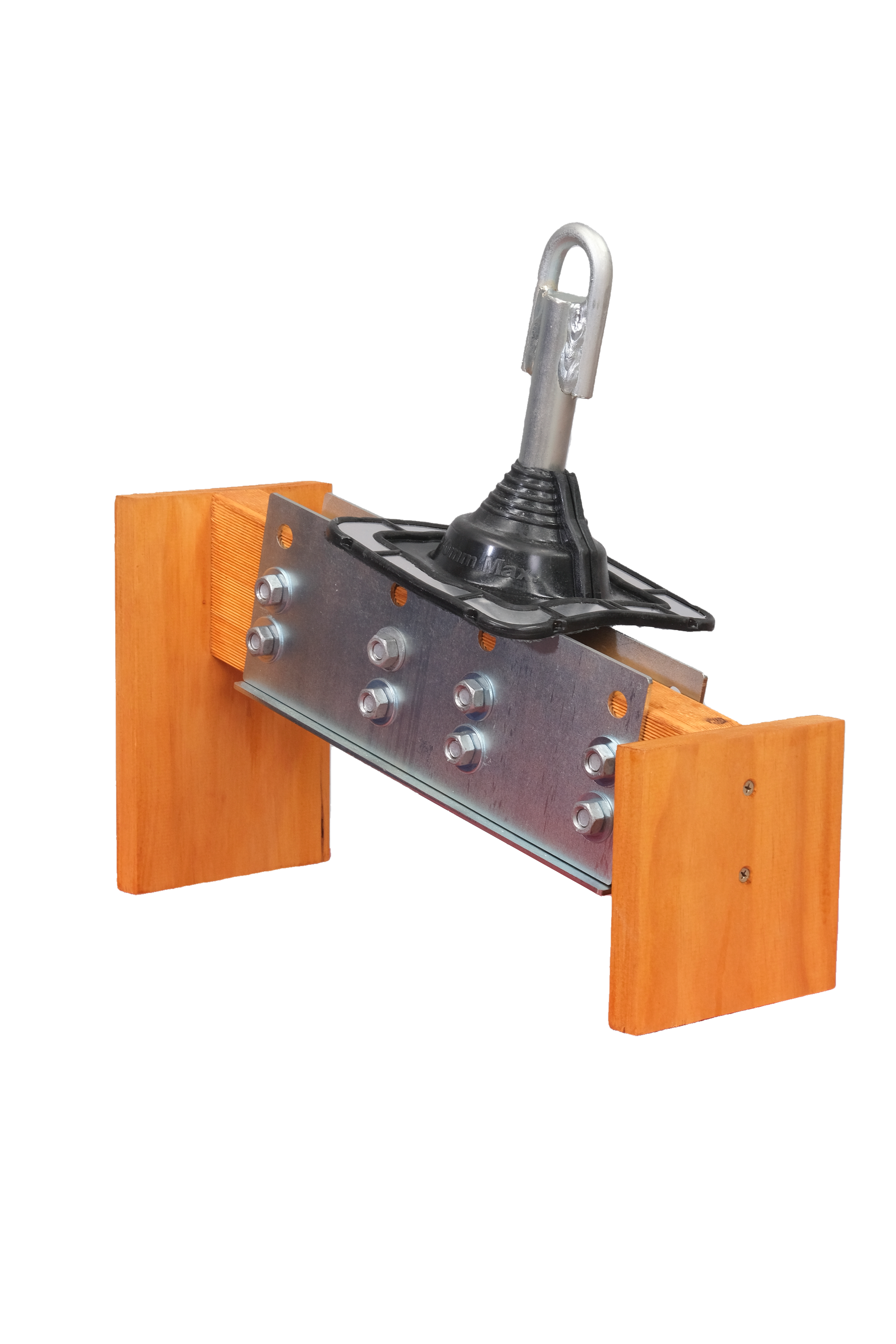

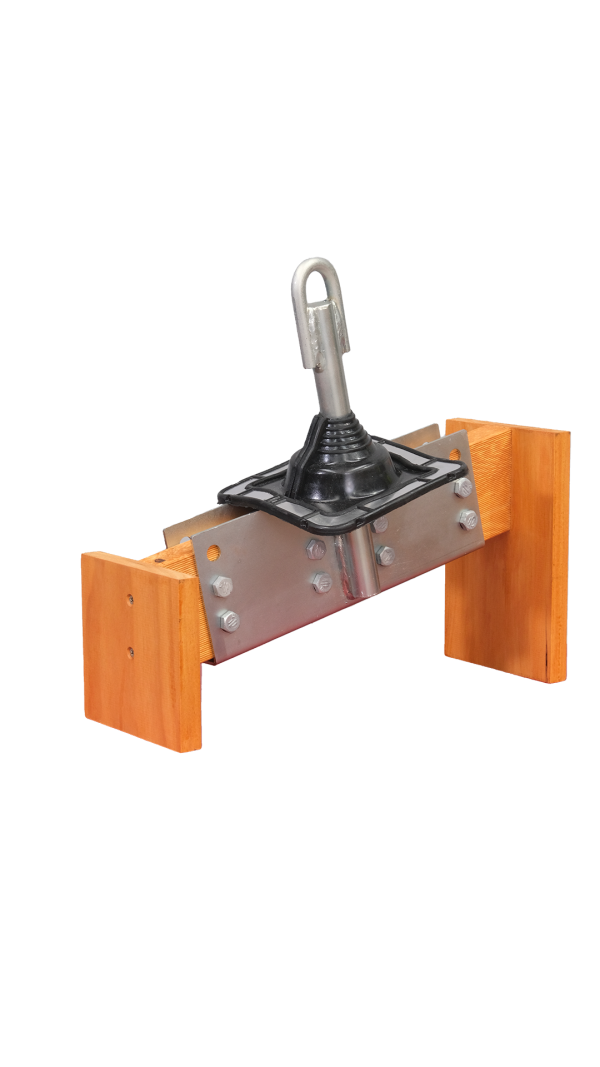

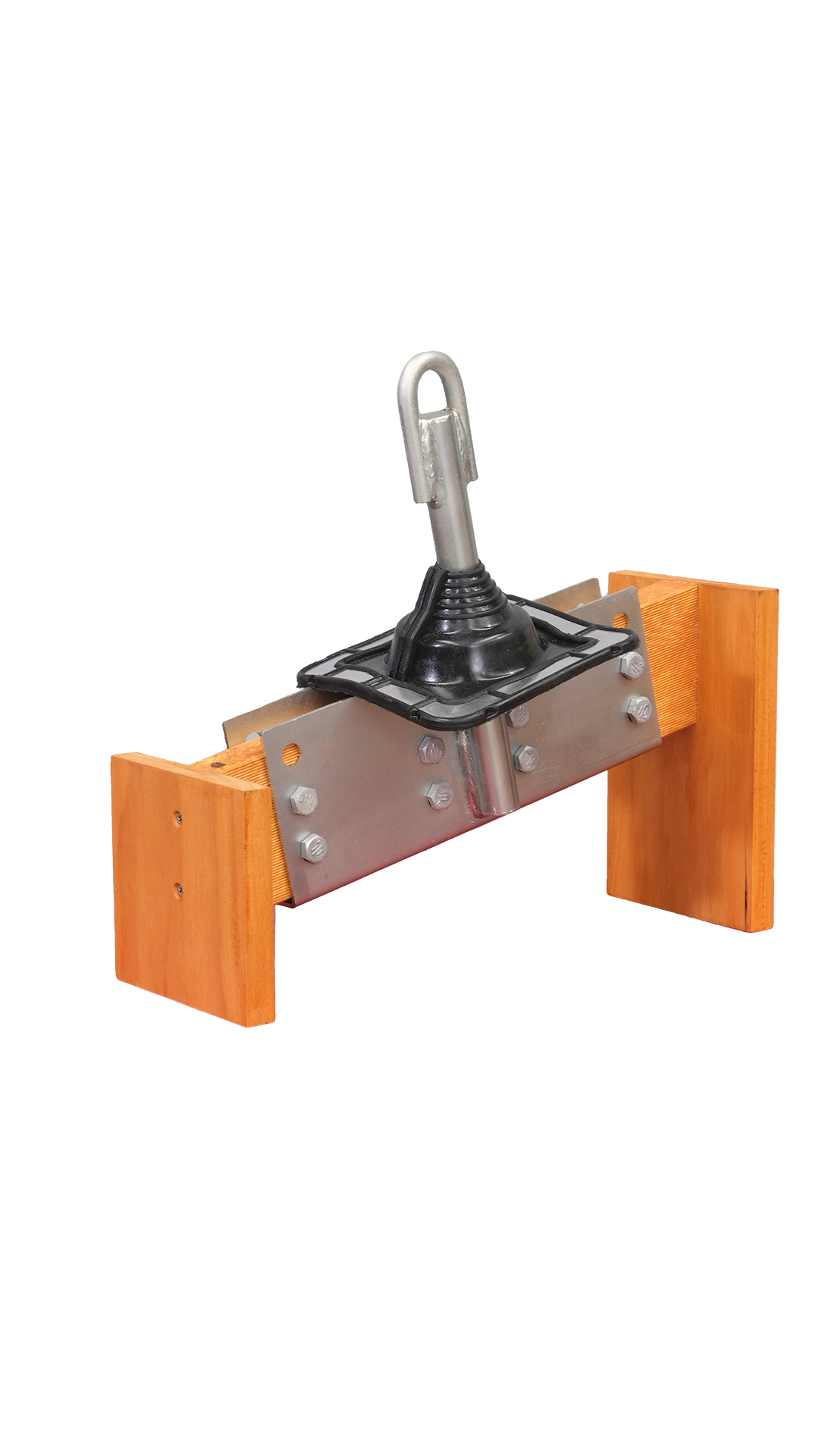

FlashRite Weather Seal (Black)
- Suitable for tin roofs
- EPDM Black certified for installation to BAL 12.5 rated roof
- EPDM will withstand constant temperatures of -40oC to 115oC
- Suitable for both standard and retrofit application
- Polymer is Ozone and UV resistant
- Base size: 164 x 164mm
- Pipe size: 10-90mm (25o roof pitch) 10-70mm (45o roof pitch)

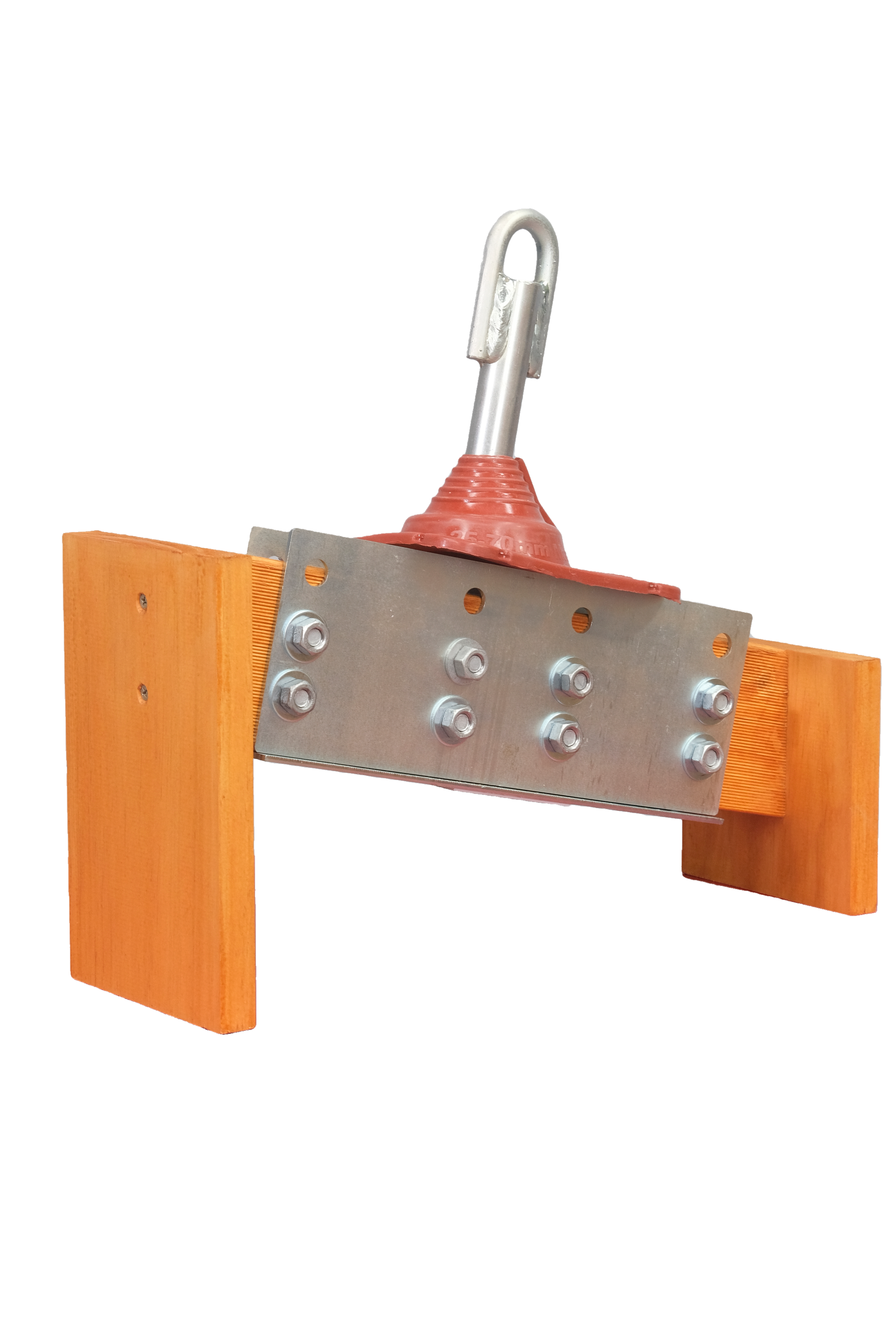

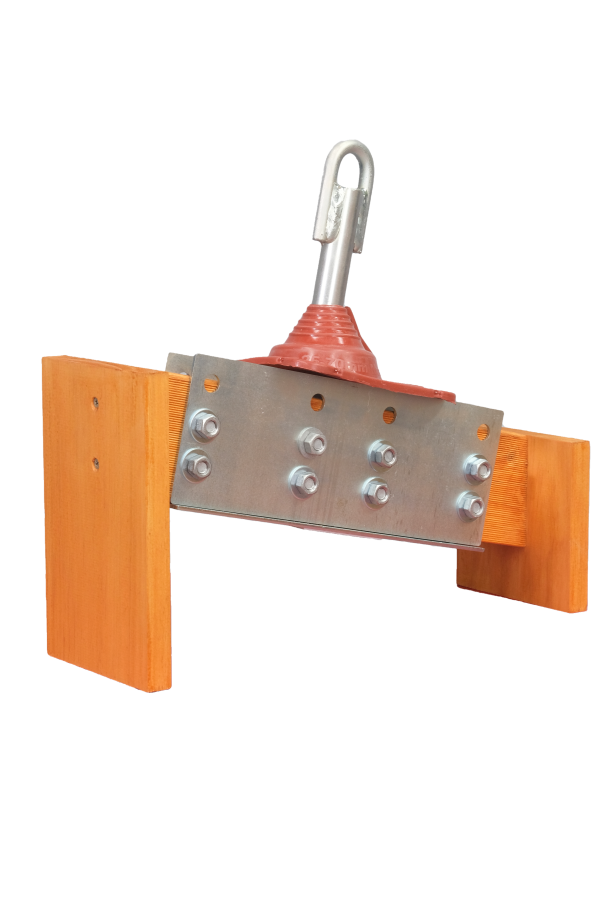

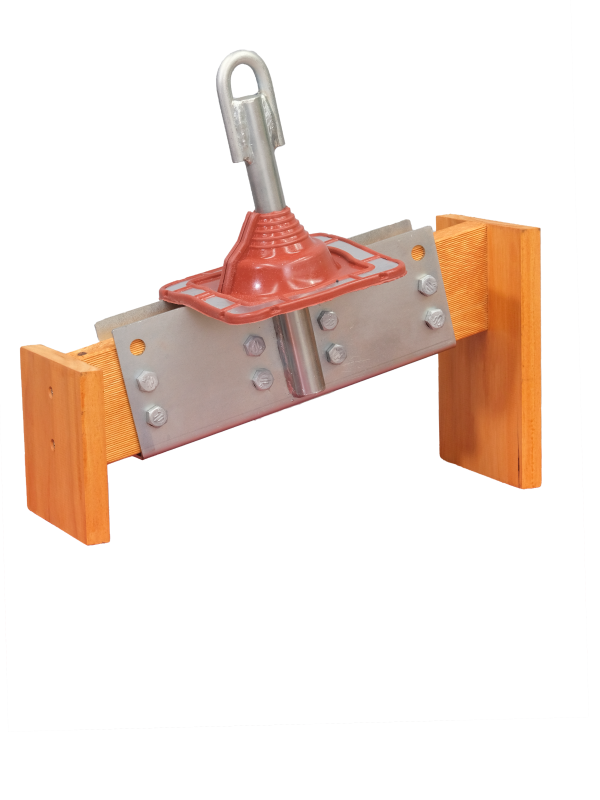

FlashRite Weather Seal (Red)
- Suitable for tin roofs
- Red silicone certified for installation to BAL 29 rated roof
- Red silicone will withstand constant temperatures of -50oC to 200oC
- Suitable for both standard and retrofit application
- Polymer is Ozone and UV resistant
- Base size: 164 x 164mm
- Pipe size: 10-90mm (25o roof pitch) 10-70mm (45o roof pitch)

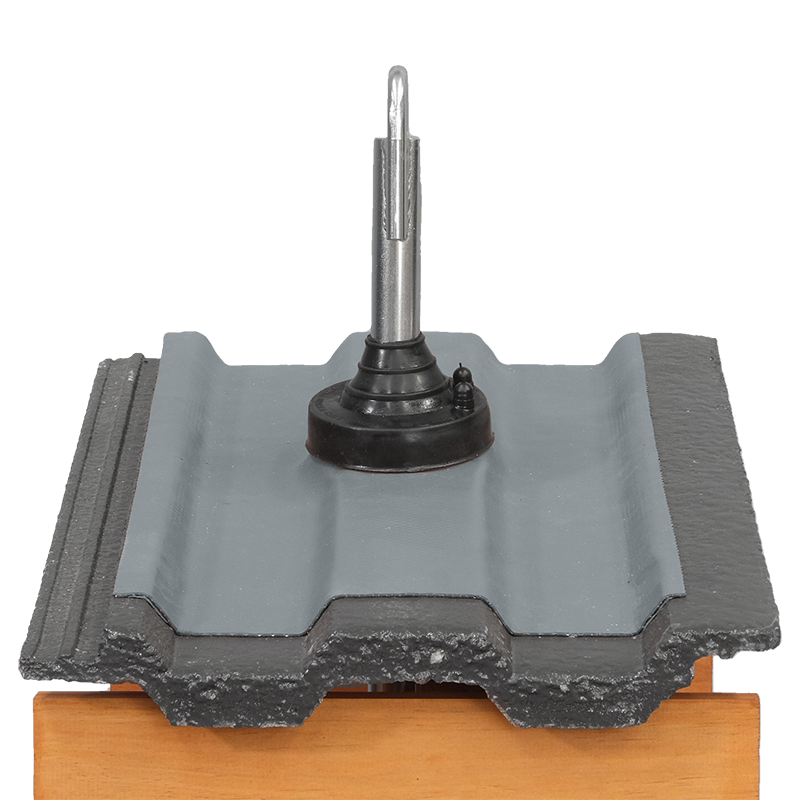

Flexatile
- Suitable for tiled roofs
- Pipe size 5-50mm (25o roof pitch) 5-40mm (45o roof pitch)
- Base size 450 x 280mm
- Light weight, non toxic, non corrosive
- Polymer is Ozone and UV resistant
- Drinking water safe
- Can be painted to match roof colour with acrylic house paint
General Installation
- Remove roofing tiles or lift roof sheets to achieve an opening to fit the Roof Extenda Safety Anchor.

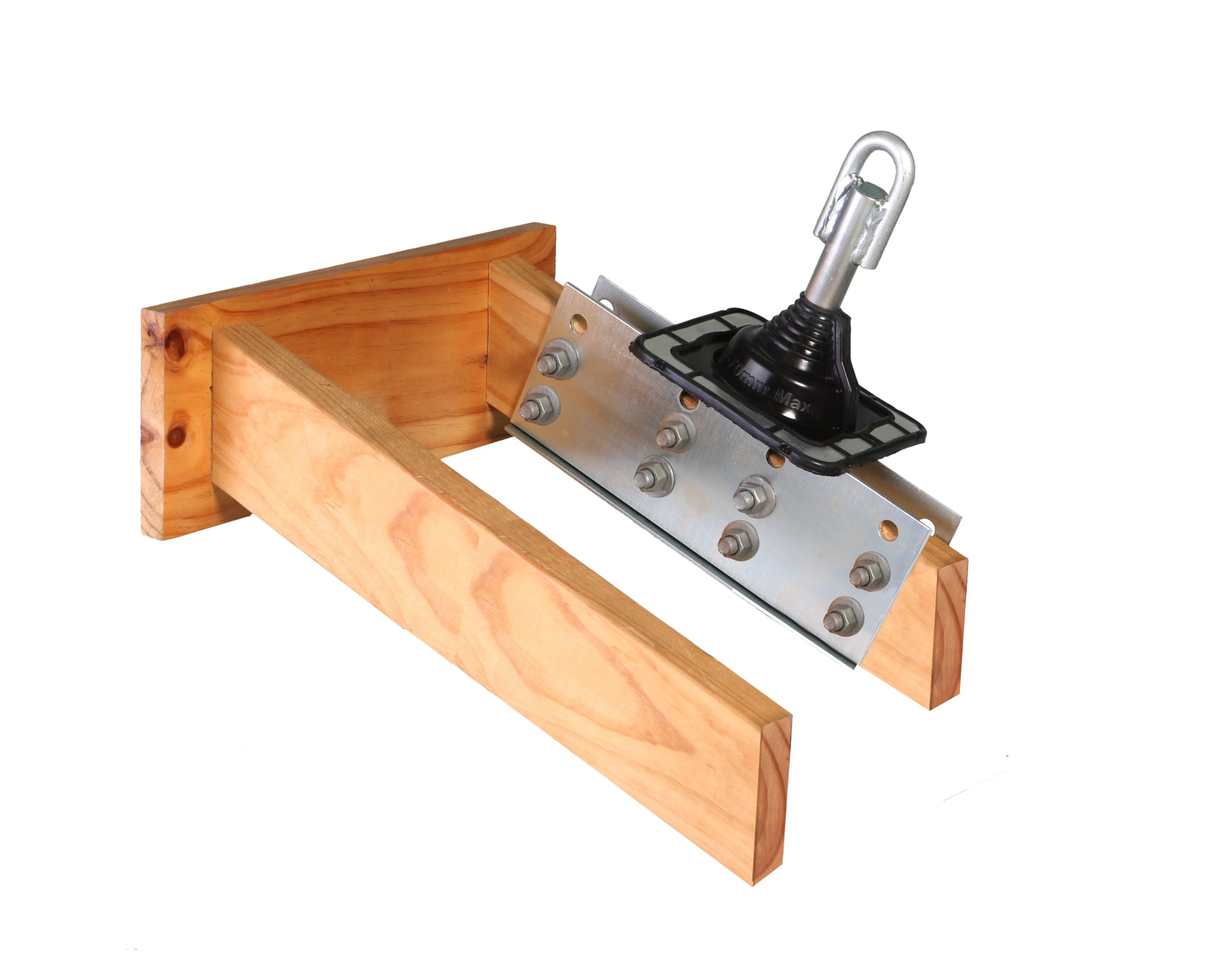

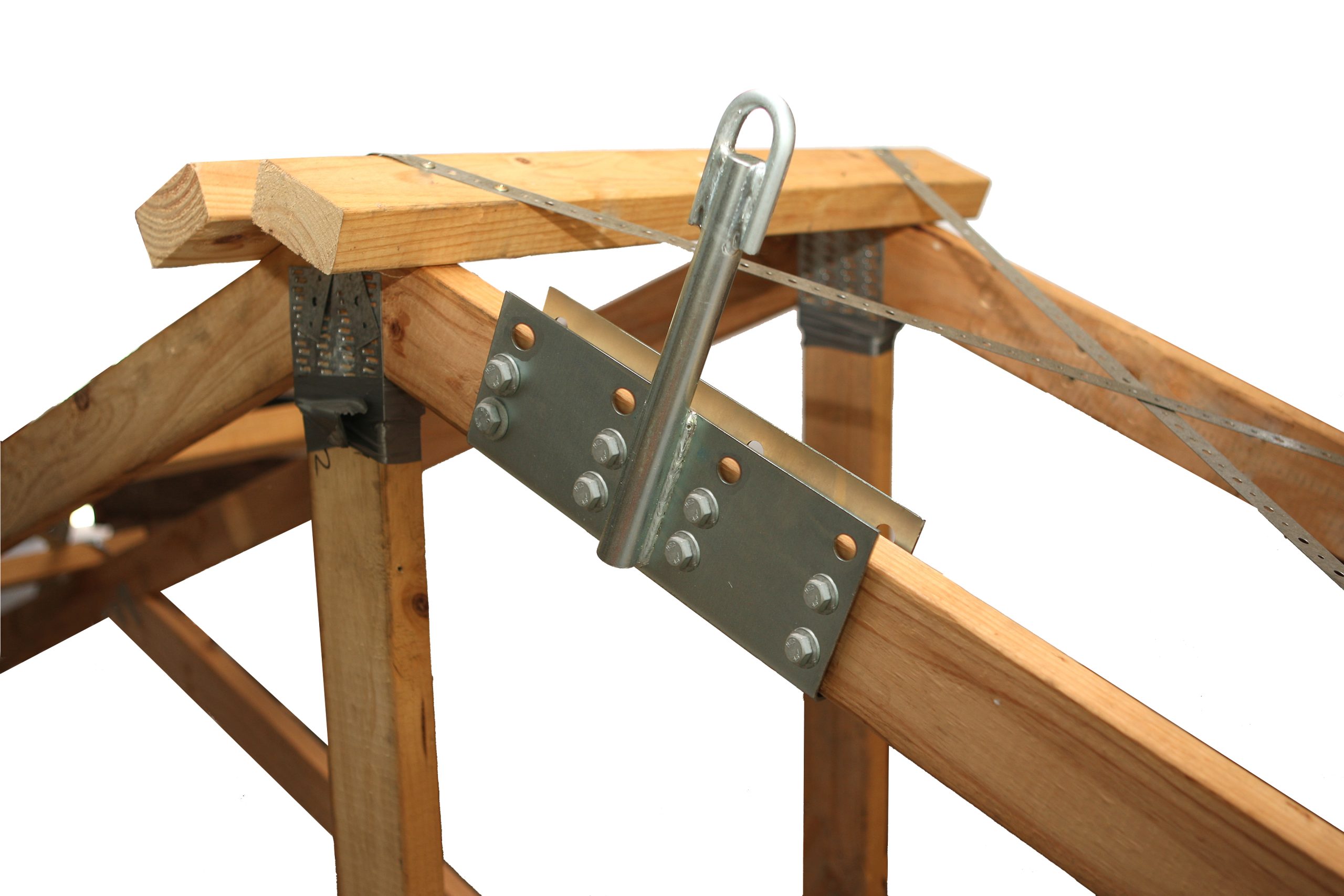

- Bolt angle section and flat plate sandwiching the selected rafter at approx. 300mm from the roof’s ridge with a minimum of 8 x M12 Hex Bolts, Nuts and Washer (Not supplied).
- Replace roof tiles or roof sheet, cutting a hole to allow the loop & roof to penetrate the roof.
- The weather Seal is fitted to the top bracket, top bracket is then wound down to the desired height and the lock nut tightened. Mark the position of the Weather Seal on the roofing. Slide the Weather Seal up to apply clear neutral cure silicone to the area marked, press & shape the Weather Seal into the roofing profile and finish with the bead of silicone to the edges of the Weather Seal to complete the fitting.
Care Instructions
Roof Safety Anchor to be cleaned and inspected yearly and re-coated if required.
Note
Local Council or Shire approval may be required prior to construction. Roof Extenda accepts no responsibility for the type of construction undertaken.
FlashRite Weather Seal
If using a FlashRite weather seal, slide it over the loop and down the shaft. Ensure roofing area is clean and dry, mark the position of the FlashRite weather seal on the roofing. Apply clear neutral cure silicone inside the area marked, press the FlashRite weather seal into position and finish with a bead of silicone to the edges of the FlashRite weather seal to complete the fitting.
Flexatile

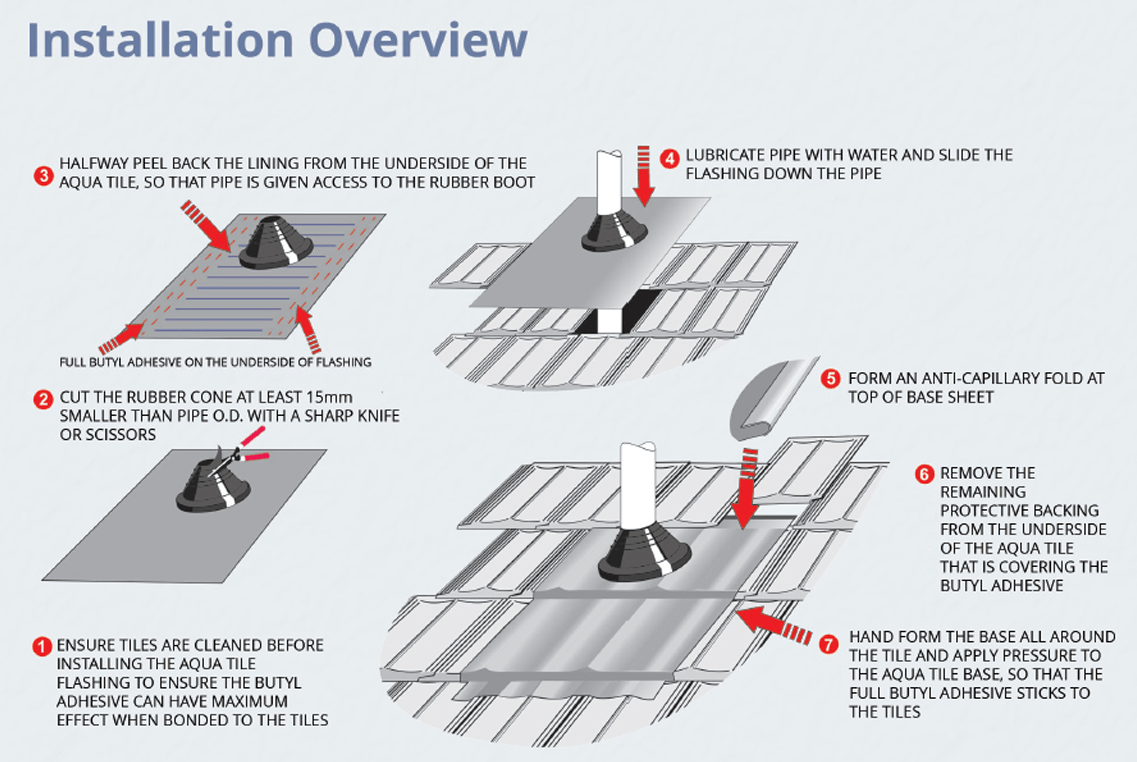

If using a flexatile, remove the middle lining from the underside of the flexatile. Cut the rubber cone at least 15mm smaller than the Roof Safety Anchor bracket OD with a sharp knife or scissors. Ensure tiles are cleaned before installation. Lubricate the bracket with water and slide the flashing down the bracket. Form an anti-capillary fold at top of base sheet. Remove the protective backing from the underside of the flashing, that is covering the butyl adhesive strips. Hand form the base all around the tile and apply pressure to the butyl adhesive side strip.
NOTE:
- Ensure all fittings are of a quality suitable to sustain the rated loads of the Roof Safety Anchor (15Kn single person/limited freefall)
- Ensure the rafter/rafter/trussis capable of sustaining the rated loading of the Roof Safety Anchor (verification by a suitably qualified engineer may be required)
- Roof Extenda recommends spraying the Roof Safety Anchor with Cold Gal if installed in coastal areas
- The Roof Safety Anchor is a single point anchor
- NO alterations are to be made to the Roof Safety Anchor
- Complies with AS/NZS 2013 standards
- It is recommended to inspect the installed Roof Safety Anchor annually, and inspect and test after an incident has occurred
- The Roof Safety Anchor is for personal use only (harness attachment) – it is NOT to be used for any other purpose, or as a multiple attachment
- The Roof Safety Anchor must be installed following the manufacturers instructions. It is designed and engineered to be installed on timber rafter/truss. Ensure installation is correct prior to using the Roof Extenda Safety Anchor.
Roof Extenda accepts no liability for the type of construction the Anchor is fixed to nor the type of harness used.
Installation Guide Safety Anchor Roof Extenda
Roof Extenda works with its manufacturers to produce a quality product. Roof Extenda has both electroplated mild steel & 316 marine grade stainless steel brackets available.
The zinc electroplated brackets have a top coating. Roof Extenda cannot provide any guarantees on the lifetime of the brackets and recommends the following:
- Roof Extenda recommends a qualified installer to seek advice from a coating manufacturer if brackets are to be coated prior to installation.
- Check brackets annually.
- Clean and coat if required with a cold galvanized paint which can be purchased at most hardware stores. This can be easily applied to the exposed surfaces of the brackets.
- If brackets show signs of corrosion they can be replaced by a builder.
If installing Roof Extenda shade sail anchor in a highly corrosive area we recommend the installer has the bracket coated in an appropriate anti-corrosive coating.
